BF Check Valve

BF Check Valve.

Genuine STAXX Part #32301109 Check Valve Assembly.

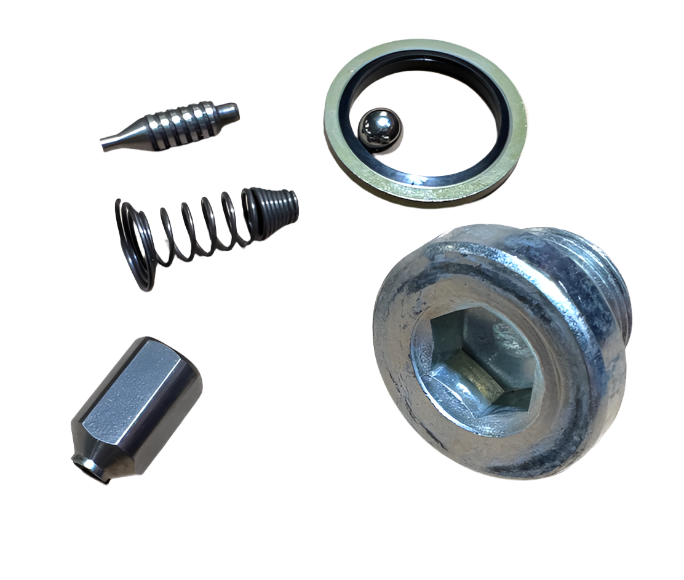

This Check Valve Assembly consists of the following parts:

• Valve Housing
• Valve Housing Seal
• Valve Spring
• Valve Cone
• Valve Ball and internal Valve Guide

With a faulty or damaged BF Check Valve, the pallet truck would no longer have the ability to lift, or may even lower on its own.  Both of these faults can be caused by other parts, but a good place to start a check on this valve would be the spring itself. If the spring looks deformed, damaged or weak, then replacement of the entire kit is worthwhile.

Fits the following models of pump trucks:

• BF25
• BF30
• WH-25ES
• WH-25-ESP
• WH-30G
• GB2
• Plus many more...

This is part # 22 on the diagram.
