Pallet truck hydraulic pump unit diagram BF pump piston. UK stockist of spare parts for pallet trucks and pump jacks

BF Pump Piston

by STAXX
SKU 32302113
£6.72 - £6.72
£6.72
£6.72 - £6.72
£6.72
Availability:
Low stock

Standard & Next Day Delivery Available On This Product

BF Pump Piston.

Genuine STAXX BF Pump Piston - Part #32302113.

The pump piston is seated to the rear of the hydraulic unit. A pump spring and spring cap are positioned over the pump piston, which allows the spring to move the piston up and down.

The handle then sits over the spring cap. When the handle is pulled down, this compresses the spring and pushes the pump piston down into the hydraulic unit. This forces oil through the hydraulic unit to the lift ram piston, which allows it to lift.

Fits Staxx models:

  • WH20L-51
  • WH-25ES-P
  • WH-25ES
  • BF30
  • BF25

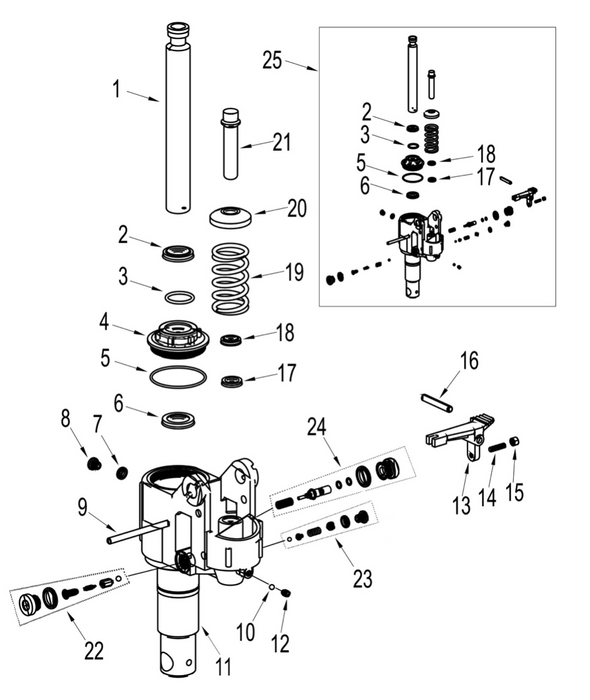

This is Part No. 21 on the diagram.
