CBD Drive Wheel Ring Gear - Part #02.01.00687
by Hangcha
SKU 02.01.00687
Original price
£60.48
-
Original price
£60.48
Original price
£60.48
£60.48
-
£60.48
Current price
£60.48
Availability:
Low stock
Standard & Next Day Delivery Available On This Product

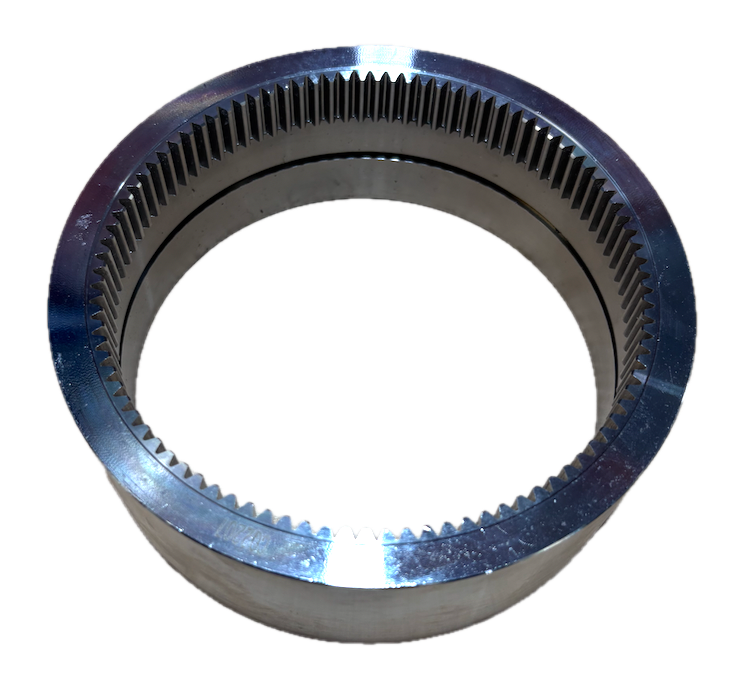

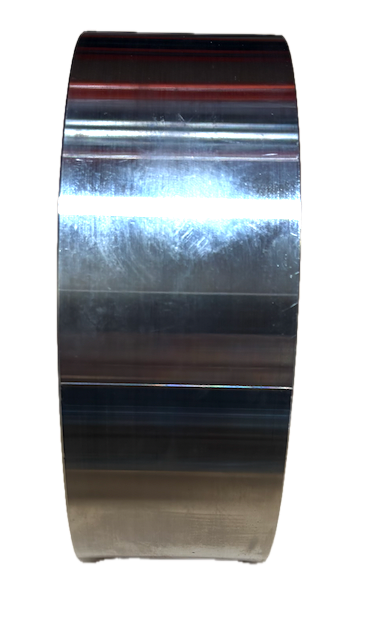

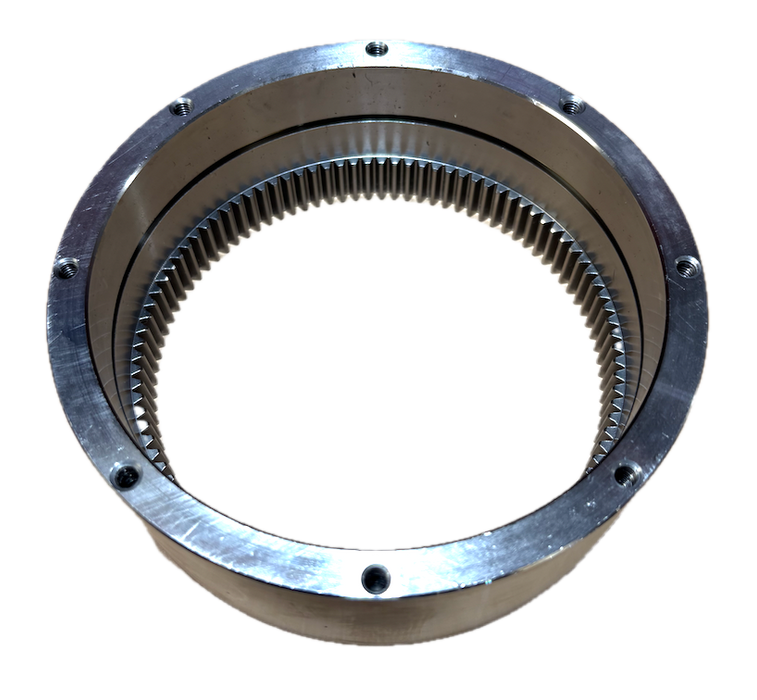

CBD Drive Wheel Ring Gear.
Genuine Hangcha CBD Drive Wheel Ring Gear - Part #02.01.00687.
Mounted on the the motor, the ring gear houses two drive wheel bearings and one drive wheel spacer. They are secured in place by the drive wheel circlip. To remove the ring gear, the motor has to be disconnected from the gearbox housing. This is to unseat the ring gear from the motor.
The drive wheel sits over the motor and is bolted in place by eight cap screws.
Fits Hangcha pallet jack models:
- CBD15-JH
- CBD15-JL3
Part #13 on the diagram.
UK Stock.
