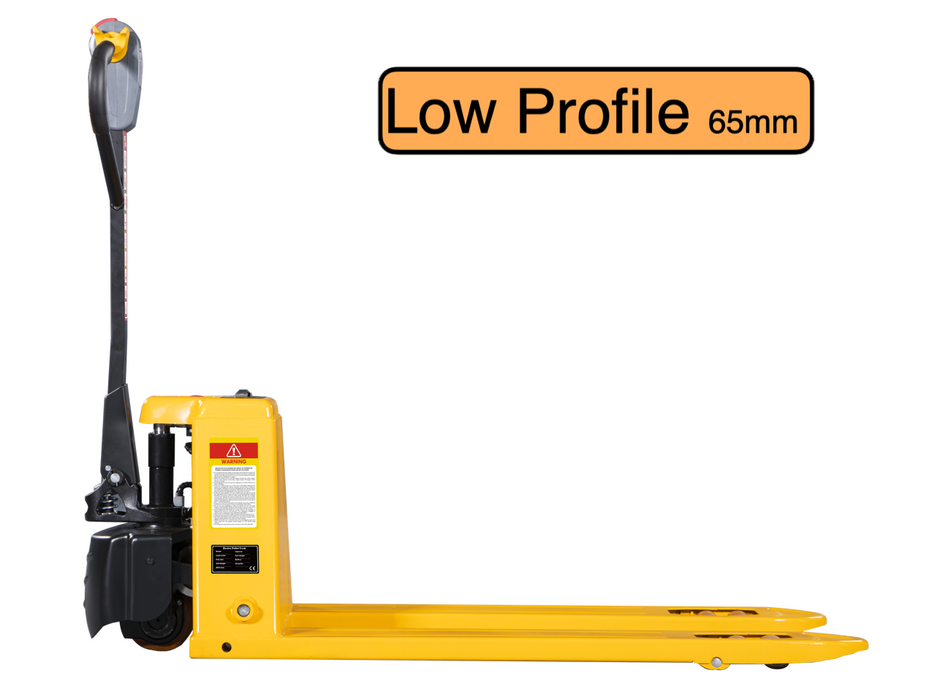

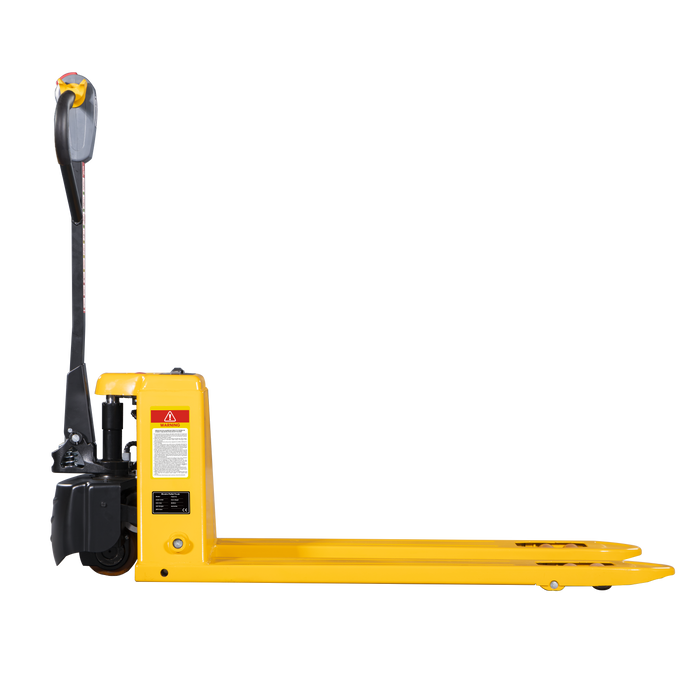

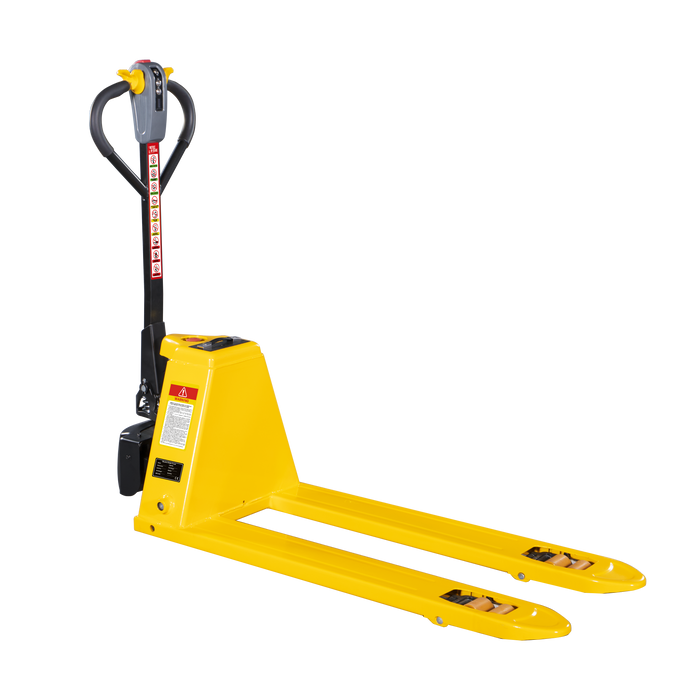

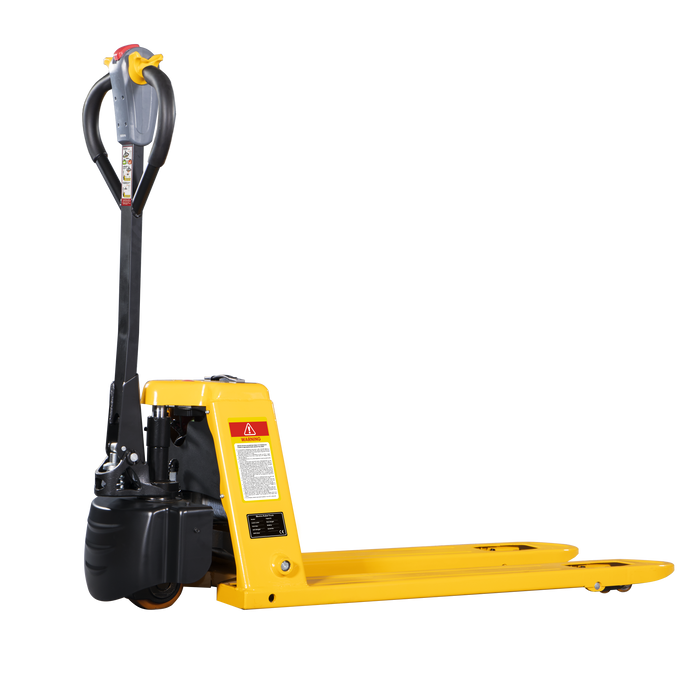

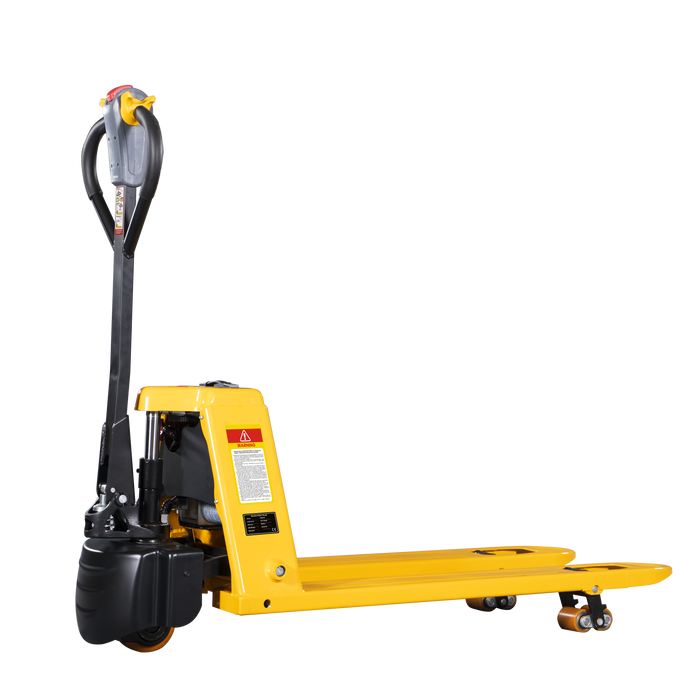

Low Profile Electric Pallet Truck 1500kg 550x1150 Forks STAXX CBD15-WS-65L / EPT15H-65L

Low Profile Electric Pallet Truck - 550x1150 - 1500kg Capacity

This Low Profile Electric Pallet Truck from STAXX is a great addition to any warehouse. It is lithium powered, and the model ref is : CBD15-WS-65L / EPT15H-65L.

Also known as an electric pump truck, this model is capable of lifting and moving loads of 1500kg. It is equipped with a powerful 0.75Kw brushless electric motor, so this electric pallet jack will  improve your productivity.

The removable lithium battery (changeable in seconds) enables the truck to run continuously, when it is used in conjunction with a 2nd battery. Therefore ensuring endless capabilities for shift work, and more.

The CBD15-WS-65L Low Profile Electric Pallet Truck is designed with longevity and ease of maintenance in mind. This results in an EPT that can be considerably more cost efficient over its entire life.

Powerful with High Gradability

Unique Brushless Technology, thanks to the industry leading maintenance free, powerful brushless motor

Ensured Battery Safety: The maintenance-free lithium battery is safe and reliable, and is also extensively tested.  So it therefore complies with all IEC, and UL global standard certification requirements.

Long Service Life: The lithium battery has a long service life.

High Safety Performance: It adopts a soft battery packing technology, a built in protection board, and multiple protection, ensuring this eliminates overcharge and over-discharge.

Maintenance free

Compact and Durable: The chassis on this low profile pump truck is built using strong, solid materials. This results in no bending or deformation. It also has a reinforced rocker arm, pushrod, wheel frame, and support seat.

This model is suitable for small workshops and tight spaces. It is also suited to trucks, vans, tail lifts, and more. It also has the tightest turning circle when compared to similar models.

Intelligent Control: When moving heavy loads in tight spaces, manoeuvrability and controllability are critical to ensure operator safety, productivity, and comfort.

The core concept of this product is to make your job safer and easier.

With the ergonomically designed handle, this electric pallet truck is very easy to operate. It reduces operator fatigue, and also improves work efficiency.

Comfortable Operation: Easy to operate, ergonomic handle, and comfortable to use.

Leading Technology: Can-Bus technology is applied on this leading electric pallet truck.

Fast and Slow Speed: For differing levels of operator experience and varied work.

Upright Drive Mode: Convenient to operate in tight areas - For example: Tail lifts, Elevators, and Vehicles.

Engineering Mode: Enabling the truck to be moved manually.

Slope Anti-Sliding Design: Easy and safe parking on slopes, which prevents accidental movement of the machine.

Standard Configuration

• Fully Lowered Height of 65mm
• Tandem PU Load Wheels
• Multi Function Handle: Horn, Lift and Lower Buttons, Butterfly Throttle, and Emergency Reverse Button
• LCD Display Screen: Battery Indicator with Hour Meter, Error Code, and Recharge Alert
• Protection Cover: Protecting both the operator and the pallet truck
• Electric Lift and Lowering
• Lithium Battery: 48v 10Ah battery, removable in seconds, which ensures charging and replacing the battery is simple
• Intelligent Battery Charger: It has a standard UK 3 pin plug, which enables you to charge the battery anywhere

To view our Fully Electric Pallet Truck Range, please CLICK HERE.

Gradeability Laden: 6%
Brake: Electromagnetic
Gradeability Unladen: 20%
Travelling Speed: 4.0/4.5 Kph
Drive Motor: 0.75Kw
Minimum Turning Radius: 1353mm
Battery Capacity (Ah): 10Ah
Battery Voltage: 48v
Load Wheel Material: PU
Load Wheel Qty: 4
Steer Wheel Material: PU
Lowered Height: 65-67mm
Lift Height: 170-185mm
Overall Width: 550mm
Overall Length: 1552mm
Fork Length: 1150mm
Fork Width: 550mm
Load Capacity: 1500kg
Controller: STAXX
Lift Motor: 0.8kw
Load Centre: 600mm
