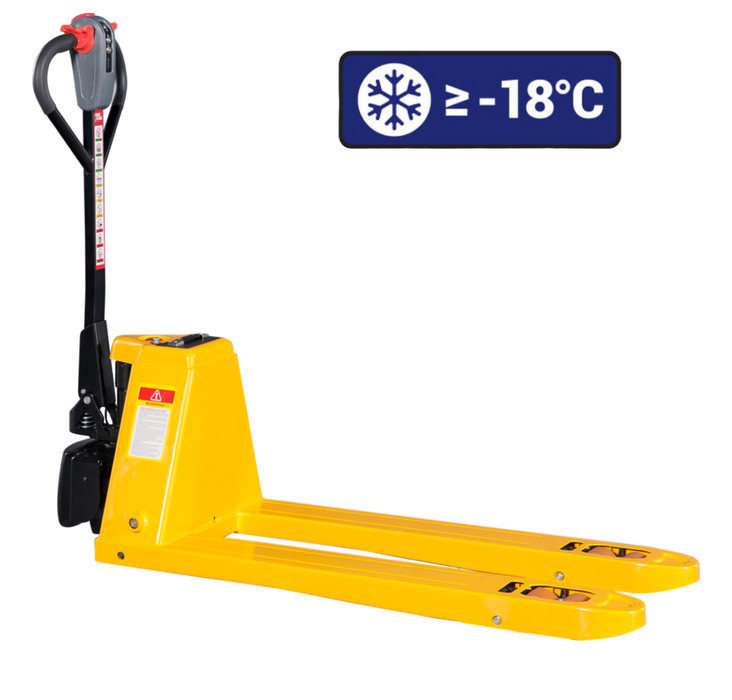

CBD20-WS Cold Store Electric Pallet Truck

The CBD20-WS / EPT20H Cold Store Fully Electric, lithium powered Pallet Truck is a great addition to any warehouse.

This Cold Store Electric Pallet Truck, also known as an electric pump truck or pallet jack, is capable of lifting and moving loads of 2000kg, and is equipped with a powerful 1.0Kw brushless electric motor.  Therefore, this electric pallet truck will improve your productivity.

The removable lithium battery (which is changeable in seconds) enabling the pump truck t run continuously, when used in conjunction with a 2nd battery.  Therefore giving endless capabilities for shift work, and more.

The CBD20-WS electric cold store pallet truck has been designed with longevity and ease of maintenance in mind, resulting in an EPT that can be considerably more cost efficient over its entire life.

Cold Store Electric Pump Truck Details & Specifications:

This Cold Store version of the reliable CBD20-WS offers significant upgrades to ensure this electric pallet truck can perform excellently in much colder conditions.

The truck is suitable for temperatures down to -18 degrees. It should be considered that prolonged use within a cold environment will lead to a shorter duration between charges.

The following items are upgraded over the standard the CBD20-WS:

• Load Wheel Bearings (Stainless Steel)
• Lower Gearbox Radial Bearing (Stainless Steel)
• 3 Piece Thrust Bearing (Stainless Steel)
• Both Drive Axle Bearings (Stainless Steel)
• Increased Water Ingress Protection for the Motor Controller
• Brake Upgrade

Powerful, and with high gradability

Unique brushless technology thanks to the industry leading maintenance free powerful brushless motor

Ensured Battery Safety

The maintenance free lithium battery on this electric cold store pallet truck is safe and reliable, and is extensively tested.  It complies with all IEC and UL global standard certification requirements.

Long service life: The lithium battery has a long service life.

High Safety Performance: Adopting soft battery packing technology, a built in protection board, and multiple protection, helps to eliminate overcharge and over-discharge.

Maintenance free

Compact and Durable

The chassis is built using strong solid materials, so as to result in no bending or deformation.  It has a reinforced rocker arm, pushrod, wheel frame, and support seat.

Suitable for small workshops and tight spaces. Also for use in trucks, vans and tail lifts; this model has the tightest turning circle among similar models.

Intelligent Control

When you're moving heavy loads in tight spaces, manoeuvrability and controllability are critical to ensure operator safety, productivity, and comfort.
The core concept of this Cold Store Electric Pallet Truck is to make your job easier.

With the ergonomically designed handle, this electric pallet truck is easy to operate, reduces fatigue, and improves work efficiency.

Comfortable Operation: Easy to operate, ergonomic handle, and comfortable to use

Leading Technology: Can-Bus technology is applied on this leading electric pallet truck

Fast and Slow Speed: To match different levels of operator experience, and varied work environments

Upright Drive Mode: Convenient to operate in tight areas, e.g.: Tail lifts, Elevators, and in Vehicles

Engineering Mode: Enables the truck to be moved manually

Slope Anti-Sliding Design: Easy parking on slopes, preventing accidental movement of the pallet truck

Standard configuration

• Tandem PU Load Wheels
• Multi Function Handle: Horn, Lift and Lower Buttons, Butterfly Throttle, and an Emergency Reverse Button
• LCD Display Screen: Battery indicator with Hour Meter, Error Code, and Recharge Alert
• Protection Cover: Protecting the operator and the pallet truck
• Electric Lift and Lowering
• Lithium Battery: The 48v 15Ah battery, which is removable in seconds, makes charging and replacing simple
• Intelligent Battery Charger: A standard UK 3 pin plug, enables you to charge the battery anywhere

2 Fork Sizes Available:

550x1150 Ideal choice for Euro pallets

685x1000 Popular choice for UK 1200x1000 pallets

To conclude, this Cold Store Electric Pallet Truck is a vital piece of equipment for use in very wet and / or extremely cold or freezing conditions.

If you are regulary needing a truck for use in conditions up to -18 degrees, then this is the truck for you.  We do have this truck with other fork size - Please click here to view these in the Electric Pallet Trucks section of this site.

To view our full range of manual and electric pallet trucks, please browse this site.  We are sure to have a model to suit your needs.

If you need any assistance, please contact our friendly technical team, who will be happy to help you.

Gradeability Laden: 6%
Brake: Electromagnetic
Gradeability Unladen: 20%
Travelling Speed: 4.0/4.5 Kph
Drive Motor: 1.0Kw
Minimum Turning Radius: 1533mm
Battery Capacity (Ah): 15Ah
Battery Voltage: 48v
Load Wheel Material: PU
Load Wheel Qty: 4
Steer Wheel Material: PU
Lowered Height: 82-85mm
Lift Height: 195-200mm
Overall Width: 550-685mm
Overall Length: 1402-1552mm
Fork Length: 1000-1150mm
Fork Width: 550-685mm
Load Capacity: 2000kg
Controller: STAXX
Lift Motor: 0.8kw
Load Centre: 600mm
