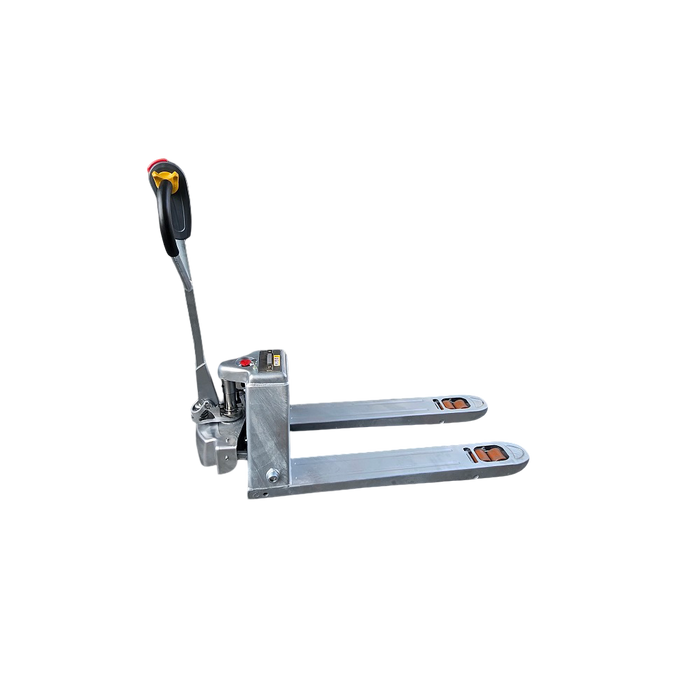

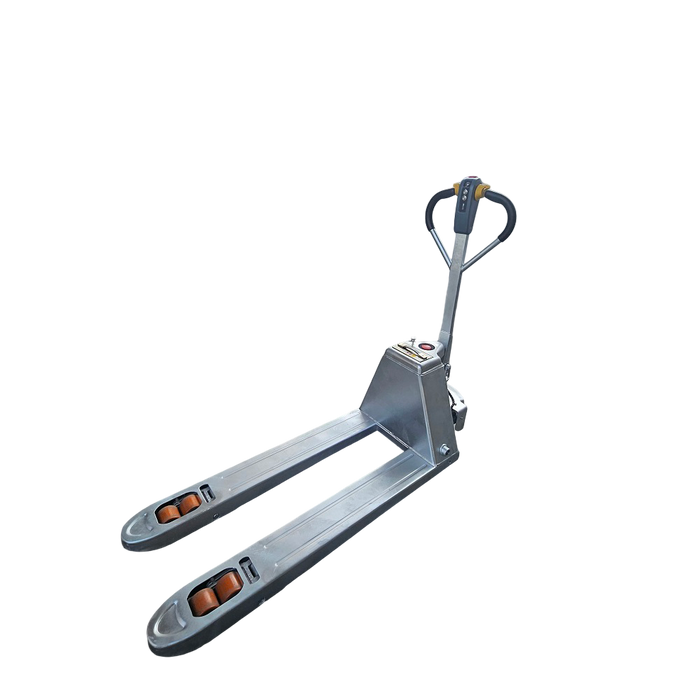

STAXX Galvanised Coldstore Fully Electric Pallet Truck

The CBD20-WS-G / EPT20G Coldstore Galvanised Fully Electric, lithium powered Pallet Truck is a great addition to any warehouse.

Also known as an electric pump truck or pallet jack, this Coldstore Galvanised Electric Pallet Truck is capable of lifting and moving loads of 2000kg, and is equipped with a powerful 1.0Kw brushless electric motor. Resulting in an electric pallet truck which is certain to improve your productivity.

The removable lithium battery (changeable in seconds) enables the truck to be run continuously, when used in conjunction with a 2nd battery. So this allows endless capabilities for shift work, and more.

The CBD20-WS-G truck has been designed with longevity and ease of maintenance in mind.  Because of this, you have an EPT that can be considerably more cost efficient over its entire life.

Powerful and with High Gradability

Unique brushless technology, thanks to the industry leading maintenance free powerful brushless motor.

Ensured Battery Safety

The maintenance-free lithium battery on this coldstore truck is safe and reliable. It is extensively tested, and so complies with all IEC and UL global standard certification requirements.

Long service life: The Lithium Battery has a long service life.

High safety performance: Adopting soft battery packing technology, a built in protection board, and multiple protection, resulting in the elimination of overcharge and over-discharge.

Maintenance free

Compact and Durable

The chassis on this coldstore galvanised pallet truck is built using strong solid materials, resulting in no bending or deformation. It has a reinforced rocker arm, pushrod, wheel frame, and a support seat.

Suitable for small workshops and tight spaces. Also trucks, vans, and tail lifts, etc., This model has the tightest turning circle when compared to similar models.

Intelligent Control

When you are moving heavy loads in tight spaces, manoeuvrability and controllability are critical to ensure safety, productivity, and comfort for your operators.

The core concept of this product is to make your job easier.

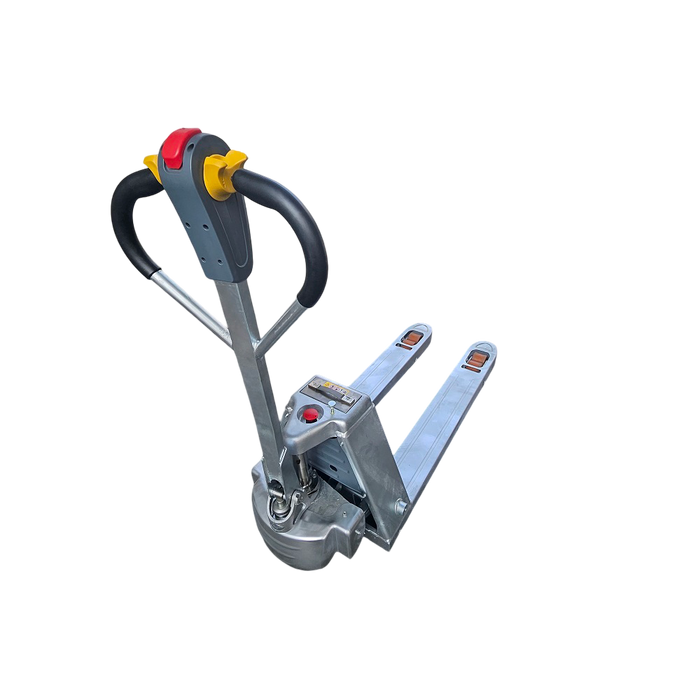

With the ergonomically designed handle, this coldstore galvanised electric pallet truck is easy to operate, reducing operator fatigue, and improving work efficiency.


• Comfortable Operation: Easy to operate, ergonomic handle, and is comfortable to use
• Leading Technology: Can-Bus technology is applied on this leading electric pallet truck
• Fast and Slow Speed: To match different levels of operator experience, and varied work environments
• Upright Drive Mode: Convenient to operate in tight areas, e.g.: on Tail lifts, in Elevators, and Vehicles
• Engineering Mode: Enables the truck to be moved manually
• Slope Anti-Sliding Design: Easy parking on slopes, so as to prevent accidental movement of the machine

Standard configuration

• Tandem PU Load Wheels
• Multi Function Handle: Horn, Lift and Lower Buttons, Butterfly Throttle, and an Emergency Reverse Button
• LCD Display Screen: Battery Indicator with Hour Meter, Error Code, and a Recharge Alert
• Protection Cover: This protects the operator and the pallet truck
• Electric Lift and Lowering
• Lithium Battery: The 48v 15Ah battery on this coldstore pallet truck, which is removable in seconds, makes charging and replacing simple
• Intelligent Battery Charger: A standard UK 3 pin plug, enabling you to charge the battery anywhere

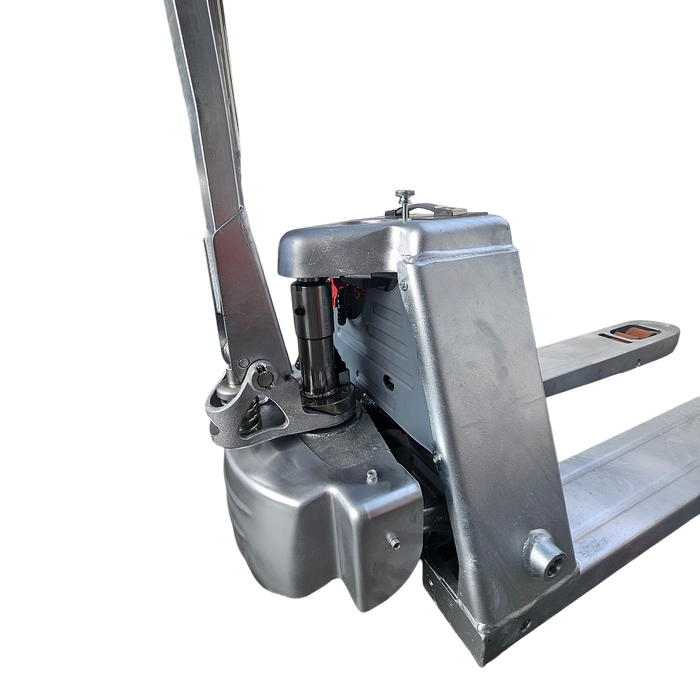

The Frame, Pushrods, Wheel Fork, Rocker Arm, Drive Unit, Handle Support, and Drive Guard Cover, are all hot galvanised.

Screws, Bolts, Bearings, Cylinder and Battery Casing are all Stainless Steel.

Handle is Cold Galvanised.

Available in 2 fork sizes:

550x1150 Popular for Euro pallets

685x1150 Preferred choice for UK 1200x1000 pallets

To view other Manual or Electric Trucks, please have a look around this website - We are sure you will find a model to suit your exact needs.

If you require any assistance, please contact our friendly techniclal team, and they will be happy to assist you:

• Tel: 0333 772 7726
• Email: info@go-ept.com

Gradeability Laden: 6%
Brake: Electromagnetic
Gradeability Unladen: 20%
Travelling Speed: 4.0/4.5 Kph
Drive Motor: 1.0Kw
Minimum Turning Radius: 1353mm
Battery Capacity (Ah): 15Ah
Battery Voltage: 48v
Load Wheel Material: PU
Load Wheel Qty: 4
Steer Wheel Material: PU
Lowered Height: 82-85mm
Lift Height: 195-200mm
Overall Width: 550-685mm
Overall Length: 1552mm
Fork Length: 1150mm
Fork Width: 550-685mm
Load Capacity: 2000kg
Controller: STAXX
Lift Motor: 0.8kw
Load Centre: 600mm
