STAXX PPT Valve Bar

STAXX PPT Valve Bar.

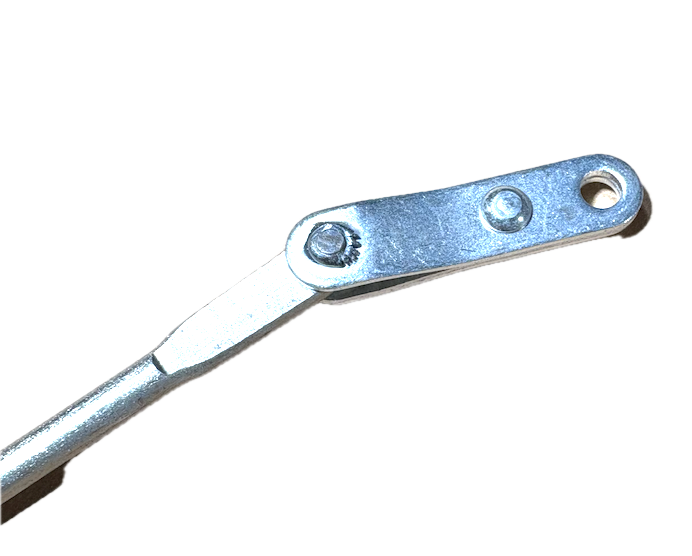

Genuine STAXX PPT Valve Bar - Part #30102090.

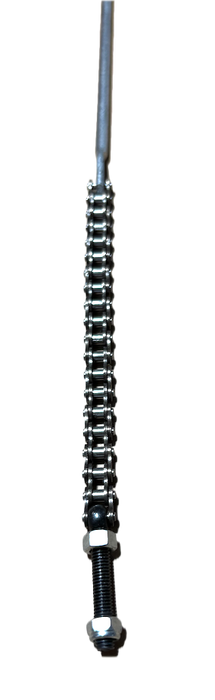

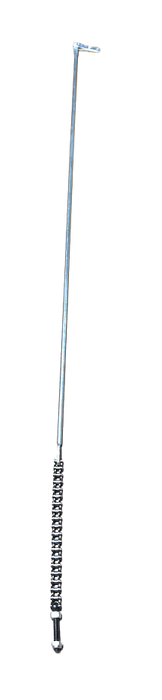

This part is also referred to as the rod and chain assembly. The valve bar connects the handle trigger to the release valve arm. Thus giving the user the ability to engage lowering, neutral, and lifting with the trigger.

Please note when fitting: The chain of the valve bar should pass through the hole in centre of the tow bar axle. If fitted over the axle instead, the truck is likely to lower down on its own as you attempt to elevate a load on the forks.

Fits STAXX pump truck models:

• CBD20-WS-SE
• PPT20H

Part #6 on the diagram.
