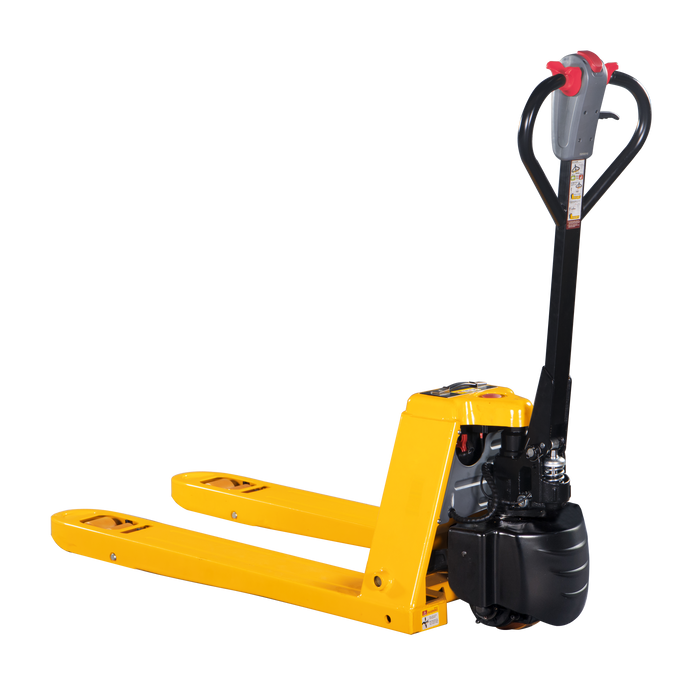

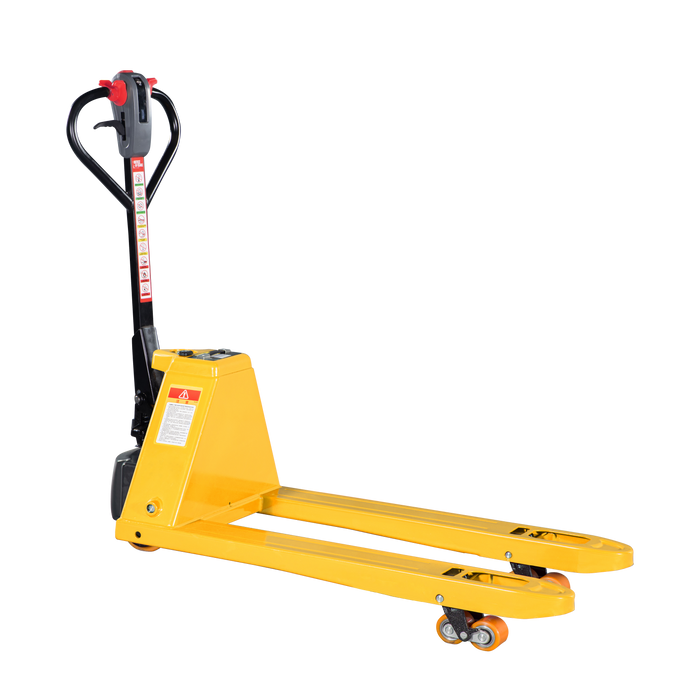

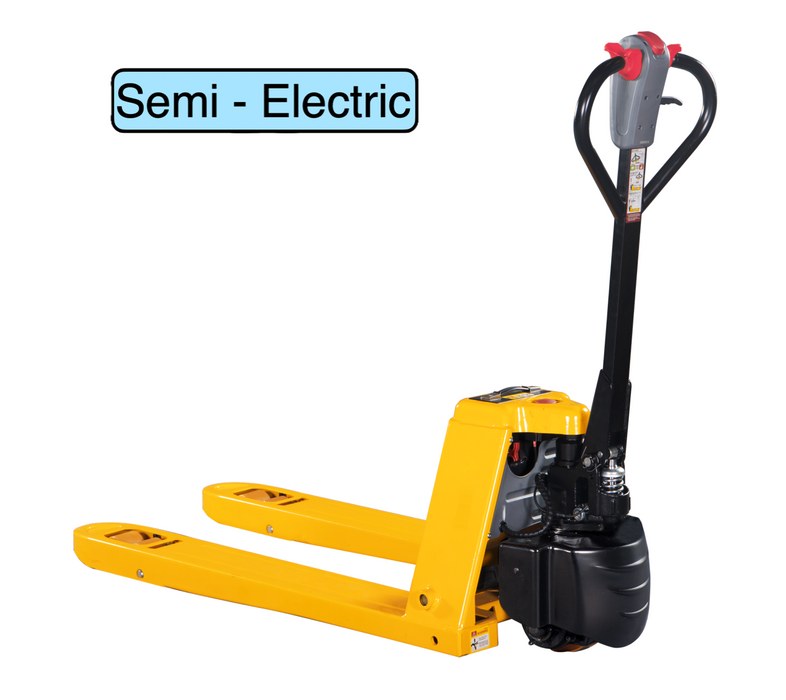

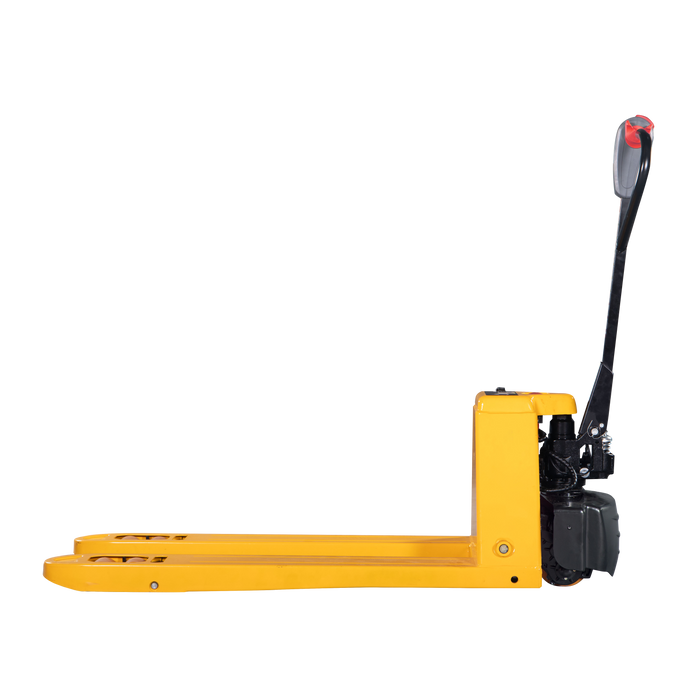

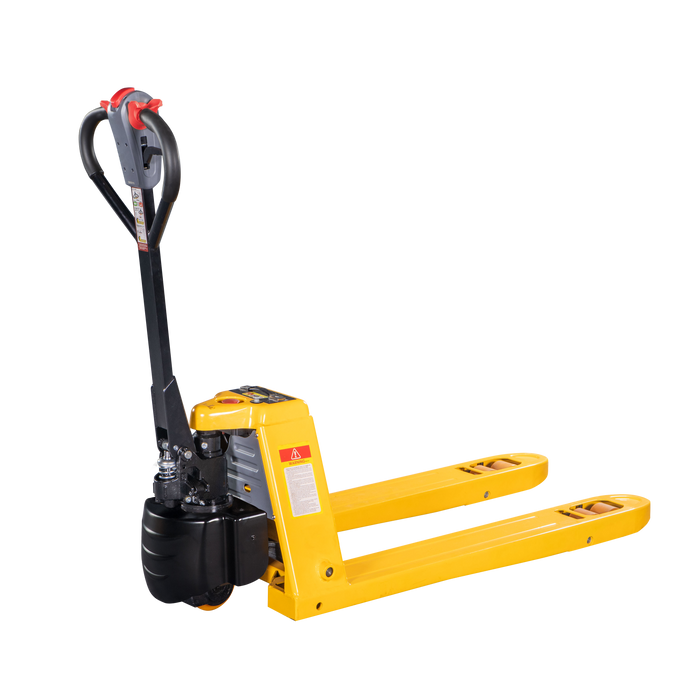

STAXX Semi Electric Pallet Truck

STAXX Semi Electric Pallet Truck

The STAXX CBD20-WS-SE / PPT20H Semi Electric, lithium powered Pallet Truck is a great addition to any warehouse.

Also known as an electric pump truck, it is capable of lifting and moving loads of 2000kg. It is also equipped with a powerful 1.0Kw brushless electric motor, so this truck is sure to improve your productivity.

The removable lithium battery (changeable in seconds) enables the truck to be run continuously, when used in conjunction with a 2nd battery. As a result, this ensures endless capabilities for shift work, and more.

The CBD20-WS Electric Pallet Truck is designed with longevity and ease of maintenance in mind. As a result, you have an EPT that can be considerably more cost efficient over its entire life.

Powerful with High Gradability

Unique brushless technology because of the industry-leading maintenance free powerful brushless motor.

Ensured Battery Safety

The maintenance free lithium battery is safe and reliable, extensively tested, and complies with all IEC, UL global standard certification requirements.

Long service life: Lithium battery which has a long service life.

High safety performance: Adopting soft battery packing technology, a built in protection board, and multiple protection, so by eliminating overcharge and over-discharge.

Maintenance free.

Compact and Durable

The STAXX Semi Electric Pallet Truck's chassis is built using strong solid materials, and because of this, it results in no-bending or deformation. It also has reinforced rocker arm, pushrod, wheel frame and a support seat.

It is suitable for small workshops and tight spaces - Also trucks, vans and tail lifts. As a result, this model has the tightest turning circle amongst similar models.

Intelligent Control

When you are moving heavy loads in tight spaces, manoeuvrability and controllability are critical to ensure safety, productivity, and comfort.
The core concept of this semi electric pallet truck is to make your job easier. With the ergonomically designed handle, this electric pallet truck is easy to operate, reduces fatigue, and improves work efficiency.

• Comfortable Operation: Easy to operate, ergonomic handle, and comfortable to use
• Leading Technology: Can-Bus technology is applied on this leading electric pallet truck
• Fast and Slow Speed: To match different levels of operator experience, and varied work environments
• Upright Drive Mode: Convenient to operate in tight areas -  for example Tail Lifts, Elevators, and Vehicles
• Engineering Mode: Enables the truck to be moved manually
• Slope Anti-Sliding Design: Easy parking on slopes, so as to prevent accidental movement of the truck

Standard configuration

• Tandem PU Load Wheels
• Multi Function Handle: Horn, Butterfly Throttle, and Emergency Reverse Button
• Manual Hydraulic Pump - 3 Position Trigger: Lift, Lower, and Neutral
• LCD Display Screen: Battery Indicator with Hour Meter, Error Code, and Recharge Alert
• Protection cover: Protects the operator and the pallet truck
• Manual Lift and Lowering
• Lithium Battery: 48v 15Ah battery, removable in seconds, and ensures charging and replacing is simple
• Intelligent Battery Charger: Standard UK 3 pin plug, which enables you to charge the battery anywhere

Available in 3 different fork sizes:

550x1000 Preferred option when working in tight spaces

550x1150 Suitable for Euro pallets

685x1000 Commonly used for UK 1200x1000 pallets

Gradeability Laden: 6%
Brake: Electromagnetic
Gradeability Unladen: 20%
Travelling Speed: 4.0/4.5 Kph
Drive Motor: 1.0Kw
Minimum Turning Radius: 1203-1353mm
Battery Capacity (Ah): 15Ah
Battery Voltage: 48v
Load Wheel Material: PU
Load Wheel Qty: 4
Steer Wheel Material: PU
Lowered Height: 82-85mm
Lift Height: 195-200mm
Overall Width: 550-685mm
Overall Length: 1402-1552mm
Fork Length: 1000-1150mm
Fork Width: 550-685mm
Load Capacity: 2000kg
Controller: STAXX
Load Centre: 600mm
