WH-25S-H Release Valve Arm - Part #28030311

WH-25S-H Release Valve Arm.

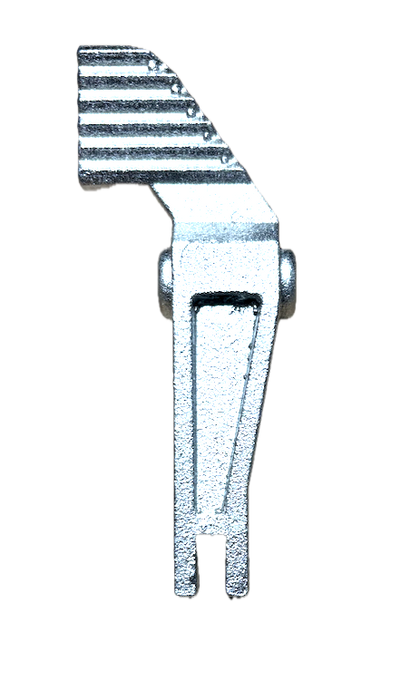

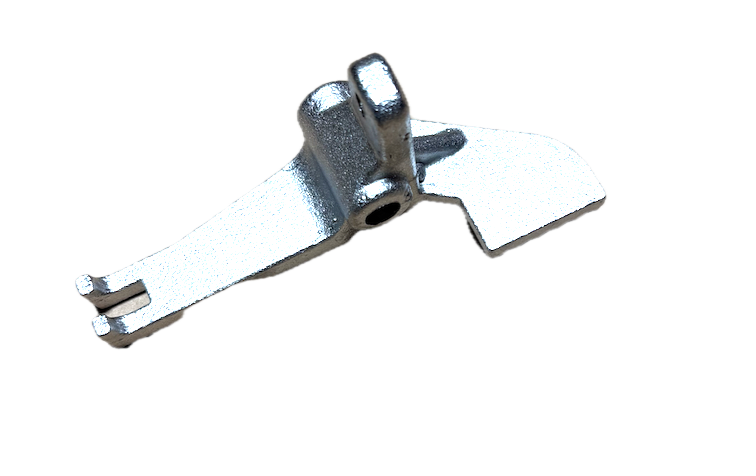

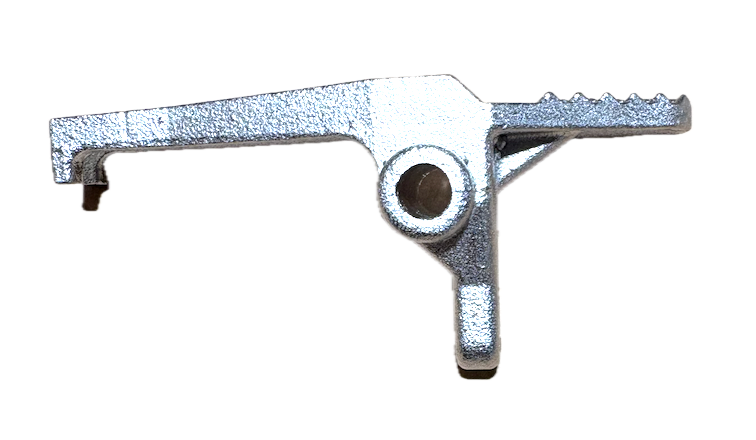

Genuine STAXX WH-25S-H Release Valve Arm - Part #28030311.

The release valve arm is a major part when it comes to lifting and lowering a pallet truck. It connects to the hydraulic unit by a roll pin. The lowering valve bar hooks on to the release valve arm. On the valve bar, there is an adjuster nut; this allows you to adjust the position of the release valve arm.

When adjusting the nut upwards, this will pull the release valve arm in, which presses the release valve in. if the nut is adjusted too far up the chain, then the truck will lower without pressing the trigger.

There is also an adjuster nut and screw on the release valve arm.

Fits STAXX Pallet Jack models:

• WH-30S-H
• WH-25S-H

Part #311 on the diagram.
