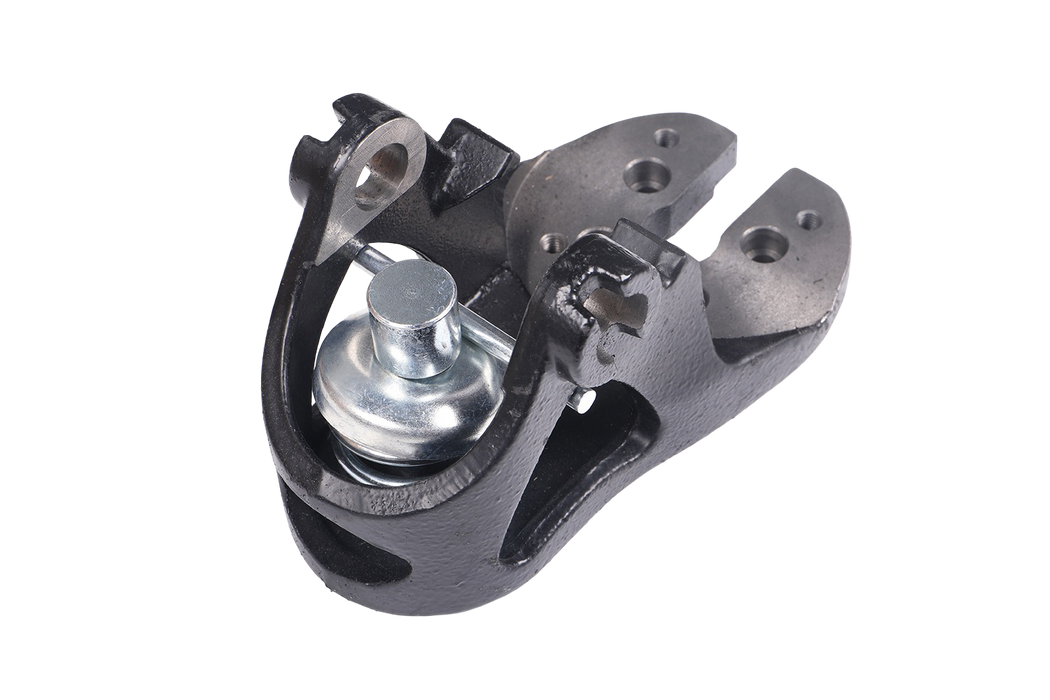

Genuine STAXX Part #31101119 Handle Mounting Bracket

The Handle mounting bracket sits on top of the gearbox housing and is held in place by 8mm cap screws, wires from the controller pass up the gearbox housing and through the handle mounting bracket.

The tow bar axle passes through the middle of the bracket to connect the handle to the bracket, The mounting bracket includes the piston, spring and spring cap and comes ready to install.

Once the bracket has been securely fitted to the truck, the handle and wiring can be installed. After the handle is installed, lower the handle and the metal retaining rod will drop out, this can be disposed of, or saved for future use. The retaining rod is used to make fitting the handle easy and has no purpose for a working truck.

Fits the following STAXX models: EPT15H, EPT20H, CBD15-WS, CBD20-WS, CBD20-WS-G, CBD15-WS-65L, EY15L, EY20L, MID-EPT20A, MID-EPT15A, MID-EPT20B

Part #3 on the diagram
