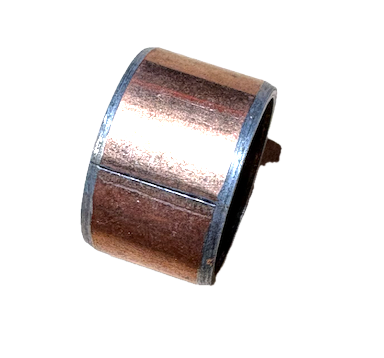

Genuine Hangcha Part #3.0451 Pushrod bush

The pushrod bush is fitted to the fork end of the pushrod, when worn the wheel fork and pushrod can have excessive play, which can lower the overall lift height or place additional loads on associated parts.

To replace the existing pushrod bushes, simply knock out/remove the existing bushes and press in the new bushes.

Bush dimensions*:

Depth: 12mm

Outer diameter: 19mm

Inner diameter: 16mm

This product fits some of the Hangcha range of electric pallet trucks, models include: CBD15-JL3, CBD15-JH

Part #7 on the diagram

*All measurements are approximate
