BF30 Valve Bar

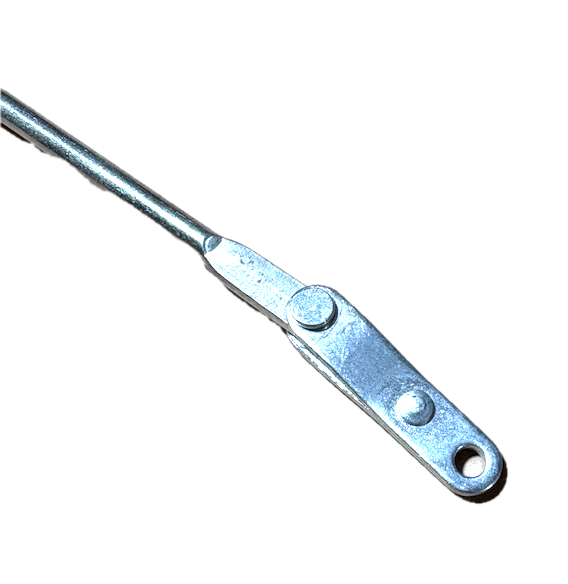

Genuine STAXX Part#32301111 Valve bar for manual pallet trucks

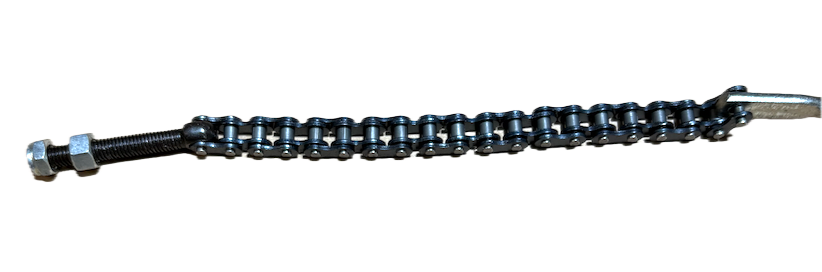

Also known referred to as the rod and chain assembly. The valve bar connects the handle trigger to the release valve arm, giving the user the ability to engage lower, neutral and lift with the trigger.

Please note when fitting, the chain of the valve bar should pass through the hole in centre of the tow bar axle, if fitted over the axle instead, then the truck is likely to lower down on it's own as you attempt to elevate a load on the forks.

Fits the many different models: AC20, AC25, BF25, BF30, GB25, CBG, CBGIII, DF20, DF25, WH-20L-51-H, WH-25L-75, WH-25L-65, PWH25-II, PWH30-II, WH-25ES, WH-25ES-P, WH-30G, Plus many more ......

The overall length of the valve bar is approx 852mm

Part #14 on the diagram
