WMS Manual Stacker Truck 1600mm Lift Height & 1500kg Load Capacity

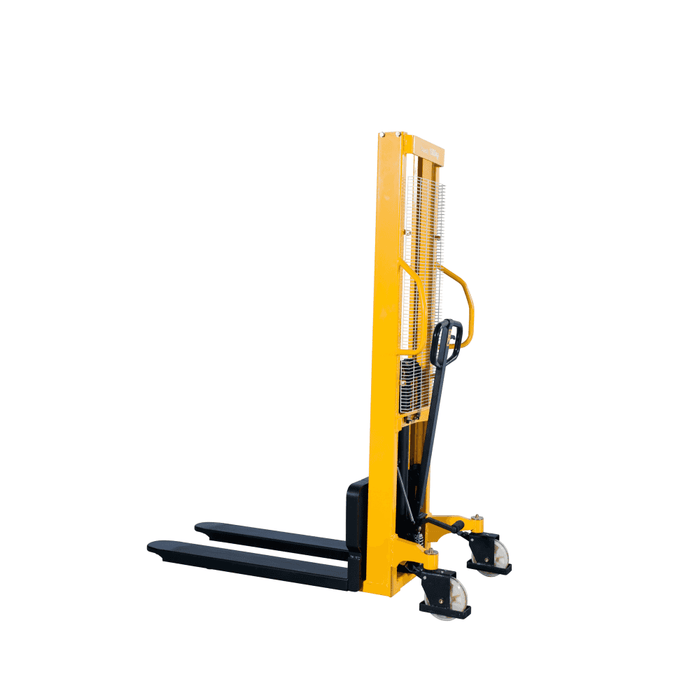

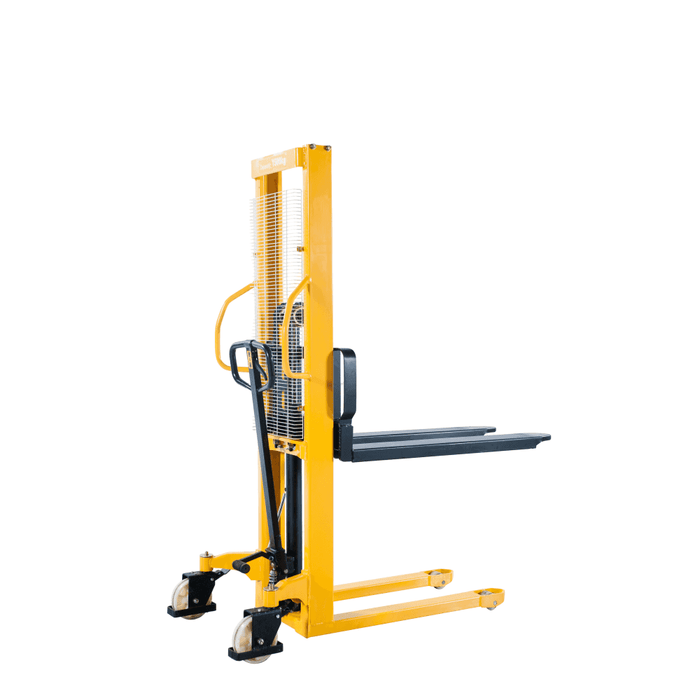

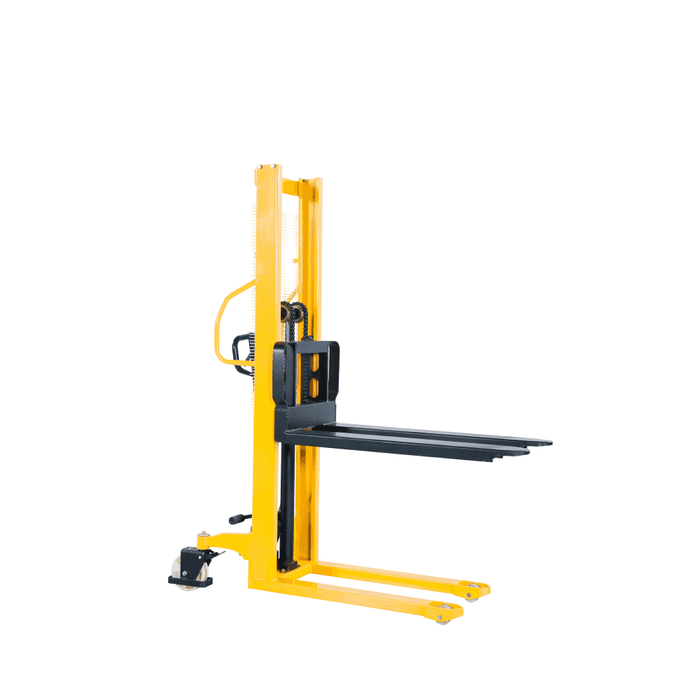

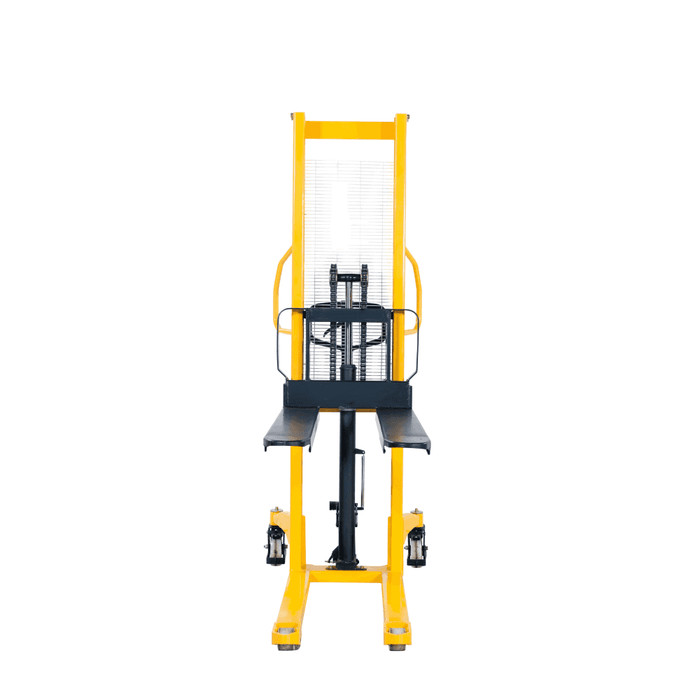

WMS Manual Stacker Truck

With a 1500kg lift capacity and a max lift height of 1600mm, this truck is perfect for lifting loads for stacking and loading vehicles.

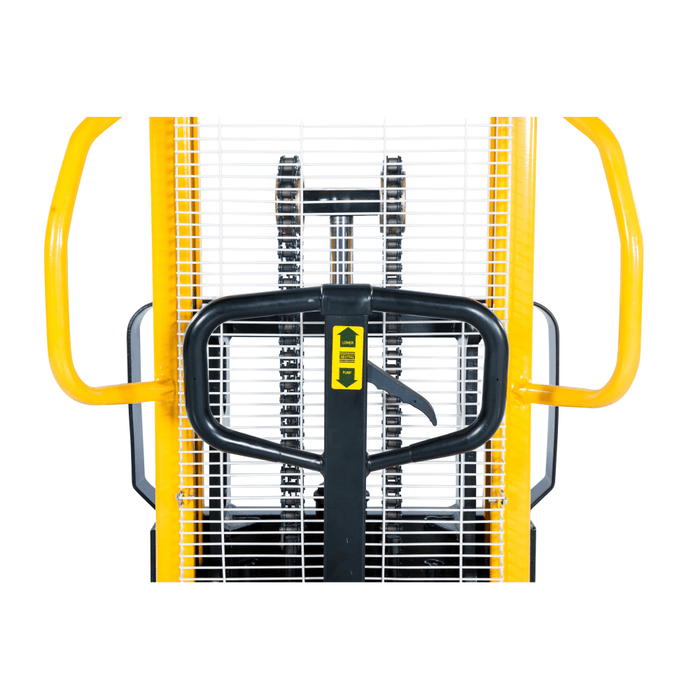

Easy and comfortable handling through ergonomical handles, effortless pulling during transport with the long tiller (handle).

Safe parking in any situation with the mechanical parking brake fitted as standard.

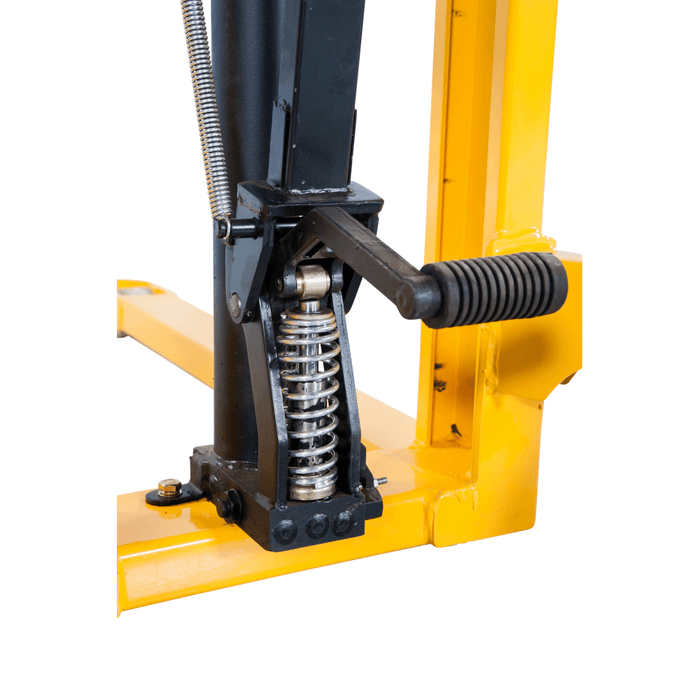

Choose to lift the load with the foot pedal or handle.

These stackers are made for lifting pallets/stillages without a bottom lat, i.e., Euro pallets from the narrow side.

If you need to lift pallets with a bottom lat, standard 1.2x1.0m Chep Pallets or the equivalent, then we have the WSM-A Straddle Stacker for this job.

Load Centre: 500mm
Brake: Yes 1 per Castor Wheel
Minimum Turning Radius: 1590mm
Maximum Mast Height: 2070mm
Lowered Mast Height: 2070mm
Load Wheel Material: Nylon
Steer Wheel Material: Nylon
Lift Height: 1600mm
Overall Width: 780mm
Overall Length: 1650mm
Fork Length: 1150mm
Fork Width: 550mm
Load Capacity: 1500kg
