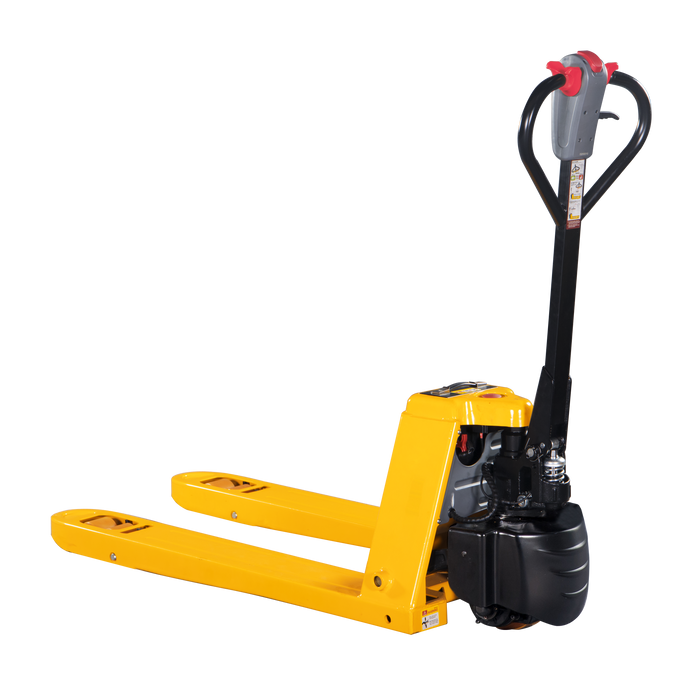

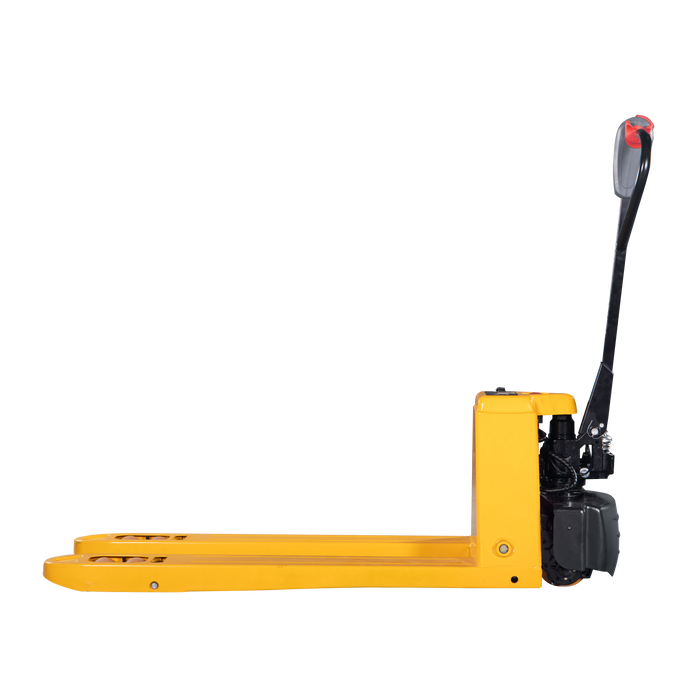

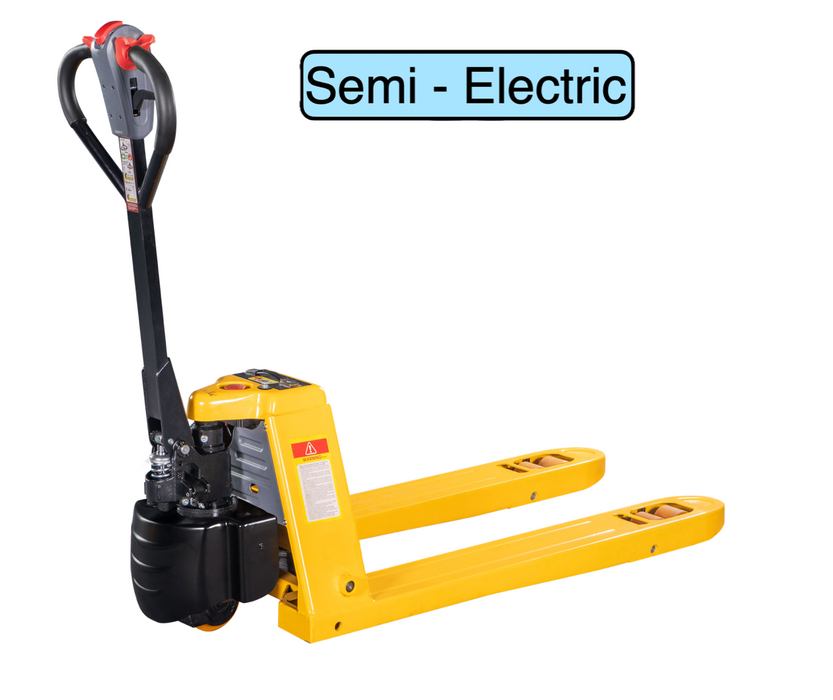

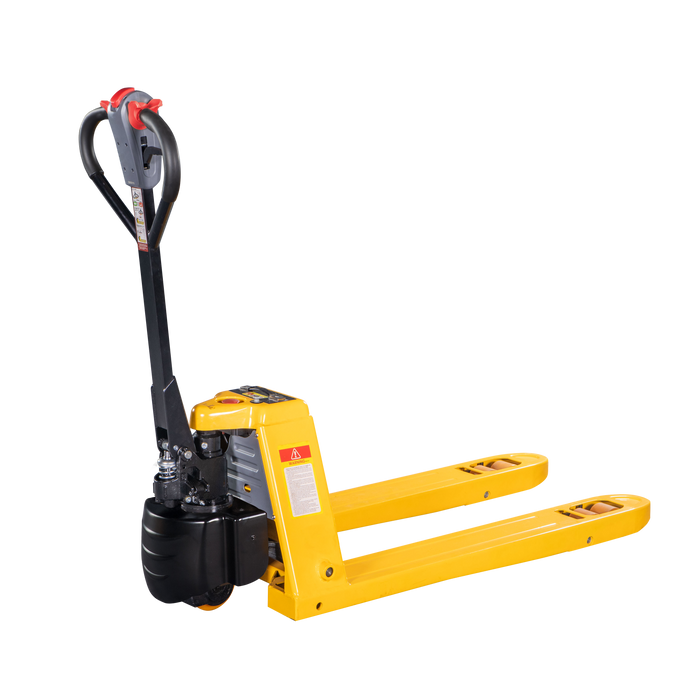

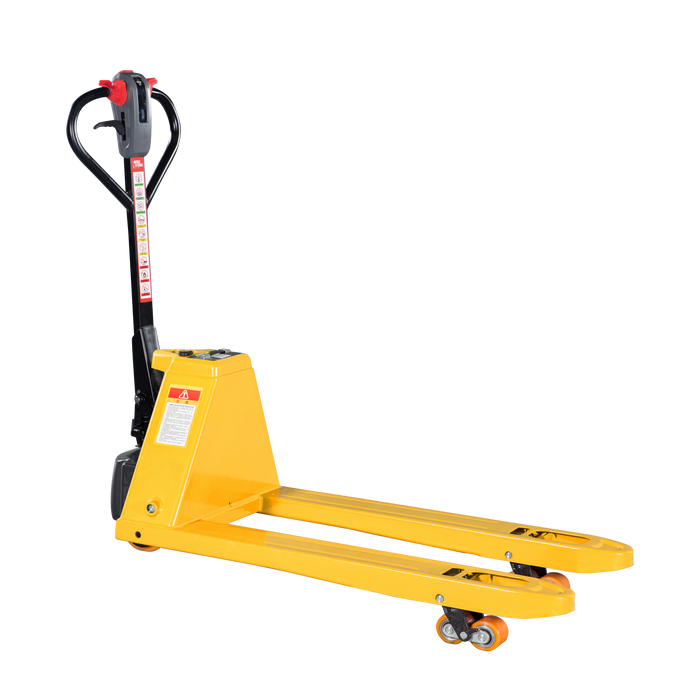

STAXX 2000kg Semi Electric Pallet Truck 685x1000 - 2000kg Capacity

The CBD20-WS-SE / PPT20H Semi Electric, lithium powered Pallet Truck is a great addition to any warehouse.

Also known as an electric pump truck, it is capable of lifting and moving a loads of 2000kg and equipped with a powerful 1.0Kw brushless electric motor, this electric pallet truck is sure to improve your productivity.

The removable lithium battery (changeable in seconds) enables the truck to be run continuously, when used in conjunction with a 2nd battery, giving endless capabilities for shift work and more.

The CBD20-WS Electric Pallet Truck has been designed with longevity and ease of maintenance in mind, resulting in an EPT that can be considerably more cost efficient over its entire life.

Powerful with High Gradability

Unique brushless technology thanks to the industry leading maintenance free powerful brushless motor.

Ensured Battery Safety

The maintenance free lithium battery is safe and reliable, extensively tested and complies with all IEC, UL global standard certification requirements.

Long service life: Lithium battery with a long service life.

High safety performance: Adopting soft battery packing technology, built in protection board and multiple protection eliminate overcharge and over-discharge.

Maintenance free.

Compact and Durable

Chassis built using strong solid materials, results in no bending or deformation, reinforced rocker arm, pushrod, wheel frame and support seat.

Suitable for small workshops and tight spaces, trucks, vans and tail lifts, this model has the tightest turning circle among similar models.

Intelligent Control

When you're moving heavy loads in tight spaces, manoeuvrability and controllability are critical to ensure safety, productivity and comfort.
The core concept of this product is to make your job easier. With the ergonomically designed handle, this electric pallet truck is easy to operate, reduces fatigue and improves work efficiency.

Comfortable Operation: Easy to operate, ergonomic handle, comfortable to use

Leading Technology: Can-Bus technology is applied on this leading electric pallet truck

Fast and Slow Speed: To match different levels of operator experience, and varied work environments

Upright Drive Mode: Convenient to operate in tight areas, for example Tail lifts, Elevators, & Vehicles

Engineering Mode: Enables the truck to be moved manually

Slope Anti-Sliding Design: Easy parking on slopes, preventing accidental movement of the machine

Standard configuration

Tandem PU Load Wheels

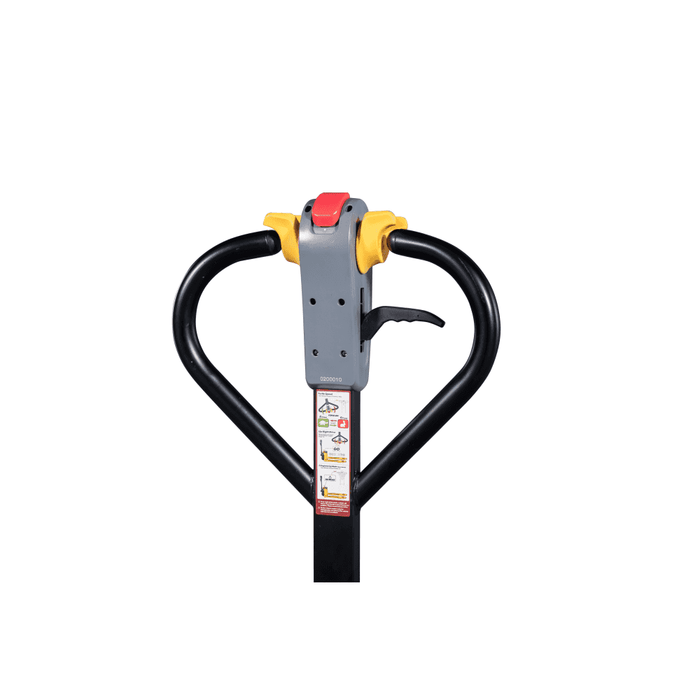

Multi function handle: Horn, Butterfly throttle, Emergency reverse button

Manual Hydraulic Pump: 3 Position trigger, lift, lower and neutral

LCD display screen: Battery indicator with hour meter, error code, recharge alert

Protection cover: Protecting the operator and the pallet truck

Manual Lift and Lowering

Lithium battery: 48v 15Ah battery, removable in seconds, ensures charging and replacing is simple

Intelligent Battery Charger: Standard UK 3 pin plug, enabling you to charge the battery anywhere

Gradeability Laden: 6%
Brake: Electromagnetic
Gradeability Unladen: 20%
Travelling Speed: 4.0/4.5 Kph
Drive Motor: 1.0Kw
Minimum Turning Radius: 1203mm
Battery Capacity (Ah): 15Ah
Battery Voltage: 48v
Load Wheel Material: PU
Load Wheel Qty: 4
Steer Wheel Material: PU
Lowered Height: 82-85mm
Lift Height: 195-200mm
Overall Width: 685mm
Overall Length: 1402mm
Fork Length: 1000mm
Fork Width: 685mm
Load Capacity: 2000kg
Controller: STAXX
Load Centre: 600mm
